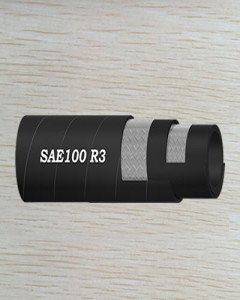

SAE J517 100 R3 Hose
SAE J517 100 R3 Hose
Hose for low to medium pressure hydraulic lines for use with petroleum, synthetic or water-based fluids in hydraulic systems.
Construction
Tube: Seamless tube of synthetic rubber,…
Hose for low to medium pressure hydraulic lines for use with petroleum, synthetic or water-based fluids in hydraulic systems.
Construction
Tube: Seamless tube of synthetic rubber, resistant to continuous exposure to oils and mild solvents & coolant liquids.
Reinforcement: Textile braided
Cover: Black colour synthetic NBR-PVC rubber with excellent abrasion resistance and resistant to oil, fire & ozone.
Temperature: -20oC to +110oC
Standard: The hoses meets and/or exceeds SAE J517 100R3, as and wherever applicable
Specifications
|
Hose ID |
OD |
Working Pressure |
Burst Pressure |
||
|
inch |
mm |
mm |
Bar |
PSI |
Bar |
|
¼” |
6 |
14.5 |
87 |
1262 |
348 |
|
5/16” |
8 |
18 |
85 |
1233 |
340 |
|
3/8” |
10 |
19.5 |
78 |
1132 |
312 |
|
½” |
12.5 |
24 |
69 |
1001 |
276 |
|
5/8” |
16 |
27 |
60 |
871 |
240 |
|
¾” |
20 |
32 |
52 |
755 |
208 |
|
7/8” |
22 |
34 |
50 |
726 |
200 |
|
1” |
25 |
38 |
40 |
581 |
160 |
|
1.1/4" |
32 |
45 |
30 |
436 |
120 |
|
1.1/2" |
38 |
51 |
30 |
436 |
120 |
|
2” |
50 |
64 |
30 |
436 |
120 |
|
2.1/2" |
63 |
80 |
20 |
291 |
80 |
|
3” |
76 |
95 |
20 |
291 |
80 |
Please note: Before using our products for applications that are not clearly indicated in the product information, please take written advice from Adroitin Industrial Products application engineer. For safety reasons, all products must be inspected regularly for operational safety and replaced in the event of any damage (especially of the cover) or unusual signs of wear and tear.
